Lead Alloy Anode Plates for Copper Electrowinning
Reliability, consistent product quality, and smooth production are the three key factors that copper electrowinning plants prioritize. Our lead alloy anode plate manufacturing process is mature, and our workers have extensive production experience, ensuring long-term quality stability.

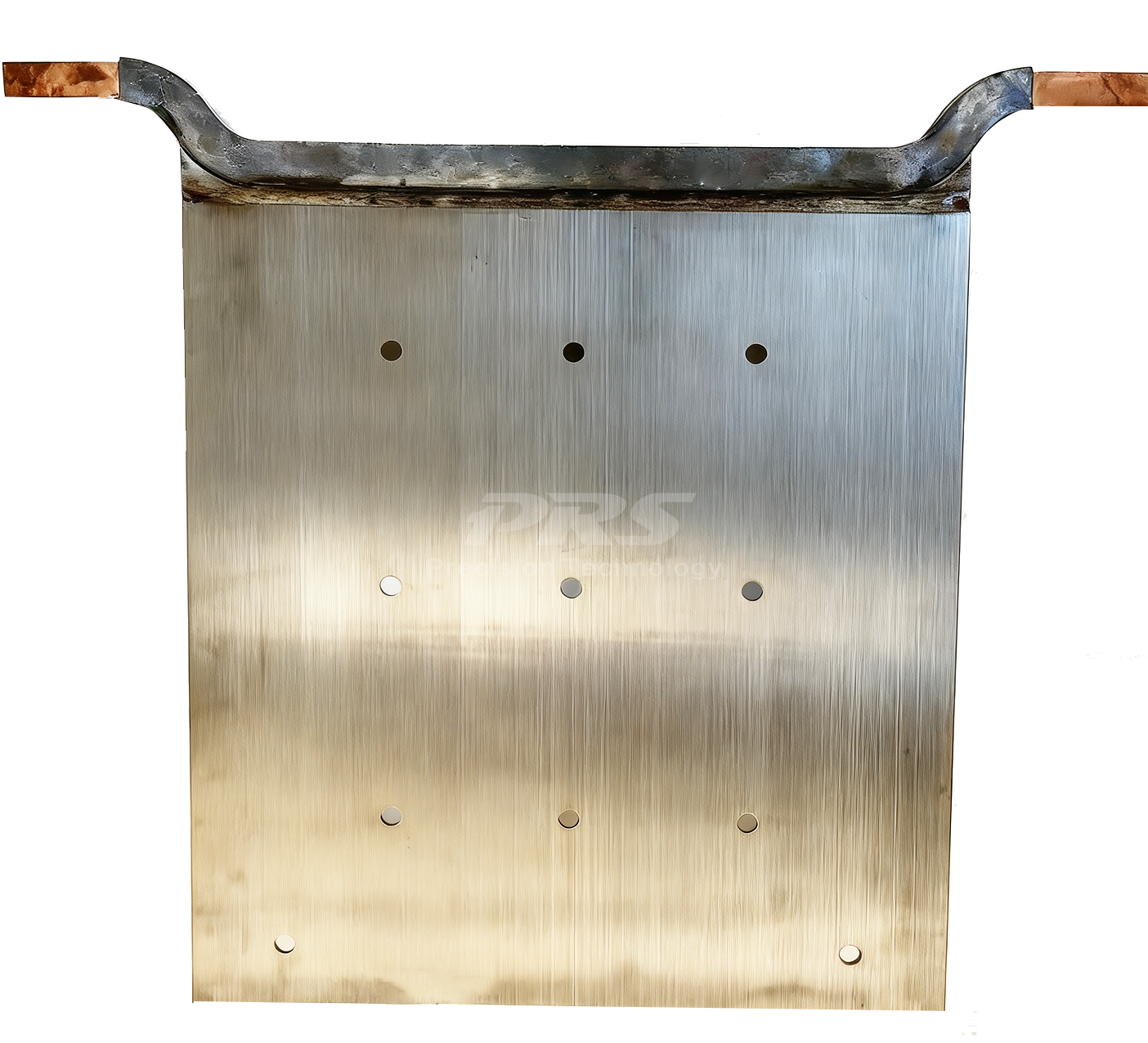

Introduction to Lead Alloy Anode Plate
Traditional and reliable. Consistent quality ensures smooth production.
Data of Performance
| Alloy Composition of Plate Surface | Pb-Sn-Ca Alloy with Aluminum |
| Effective Plate Area | 2 Square Meters |
| Application for | Copper EW |
| Service Life under Normal Conditions | 4 ~ 5 Years |
Actual data from customer factories:
1. It is made of multi-element lead alloy (containing rare earth elements)
2. The plate surface is flat, and the alloy composition is evenly distributed.

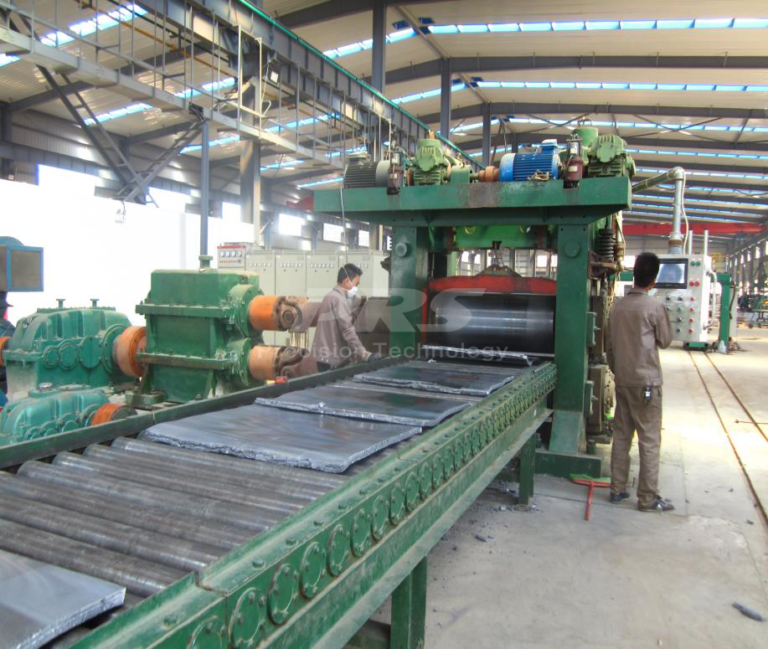

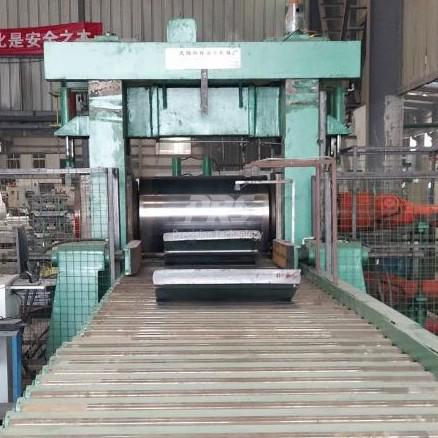

3. Hot rolling at first and then cold rolling
4. Embossing was added as a surface treatment process, which enhances the corrosion resistance of the anode plates while reducing the lead content in the cathode copper.
5. Holes are on the plate which makes that the electrolyte has good fluidity.
6. Various methods of welding copper beams and plates are used – acetylene oxygen and laser.
The Industry Standard for Copper Electrowinning: Proven Reliability, Rich Experience
In copper electrowinning, where uptime and purity are paramount, you need an anode you can trust. Not just a component, but a foundation of your process. Our standard Lead Alloy Anode Plate represents decades of refined metallurgical science and manufacturing expertise. It is the proven, reliable choice for operations that prioritize consistent performance, predictable outcomes, and long-term stability.
Time-Tested Manufacturing: The Hallmark of Quality
Our process isn’t just about manufacturing anodes; it’s about engineering a workhorse. Every step is calibrated to deliver the consistency that the copper industry relies on.
1. Precision Alloying:
We start with high-purity lead (Pb) and introduce precise amounts of alloying elements like calcium (Ca), tin (Sn), and strontium (Sr). Our proprietary formulations are optimized for copper electrolytes, promoting the formation of a highly conductive and protective lead dioxide (PbO₂) layer that ensures efficient operation and longevity.
2. Advanced Casting, Repeated Rolling and Precision Calibration for High-quality Lead Alloy Plate (Blade):

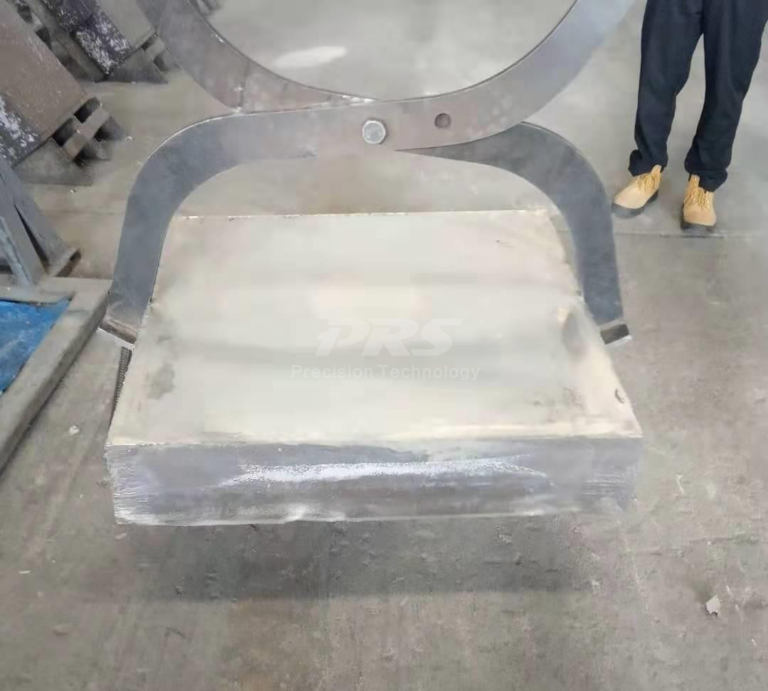

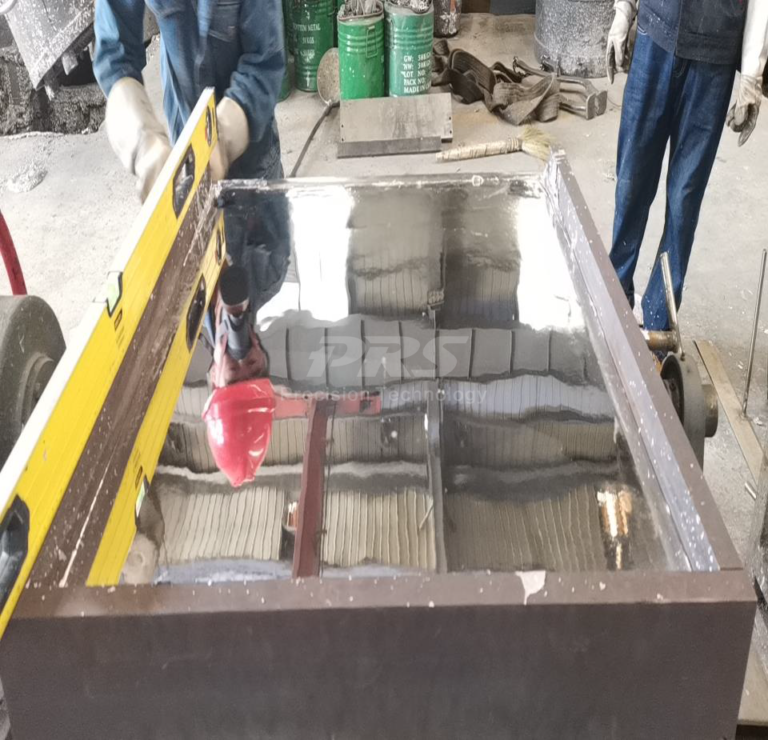

2.1 Advanced Casting for Superior Integrity:
2.2 Repeated Rolling and Precision Calibration:

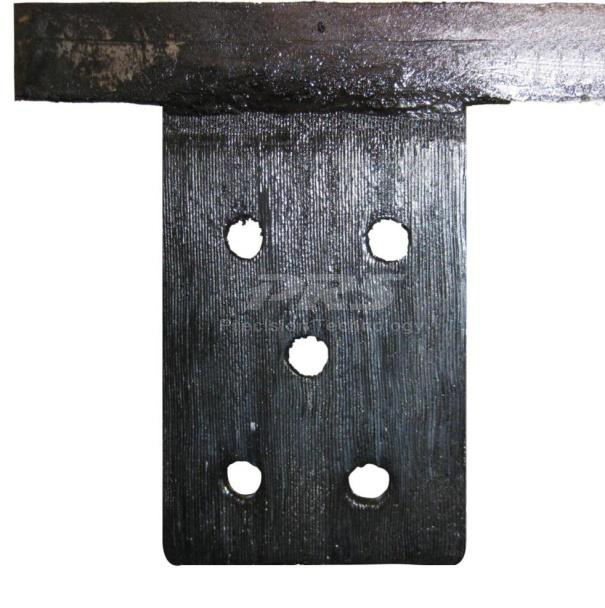

2.3 Patented Increased Surface Area Treatment:
Our patented surface area enhancement treatment can more than double the specific surface area of the anode plate. Under the same current intensity, the current density on the surface of this improved anode plate is only half that of the traditional anode plate. Therefore, it can significantly reduce the electrochemical corrosion and oxidation rate of the anode plate, improve its service life, and enhance the product quality of the cathode copper. For areas with frequent power outages and copper ores containing cobalt, to prevent the oxide film on the anode plate surface from peeling off and causing excessive lead content in the cathode copper, we perform a surface area enhancement treatment on the anode plate. This treatment improves the adhesion of lead dioxide, cobalt dioxide, or cobalt tetroxide to the anode plate, reduces corrosion of the lead alloy anode plate, and extends its service life.
3. Metallurgically Bonded Lead Cladding Copper Conductive Beam:

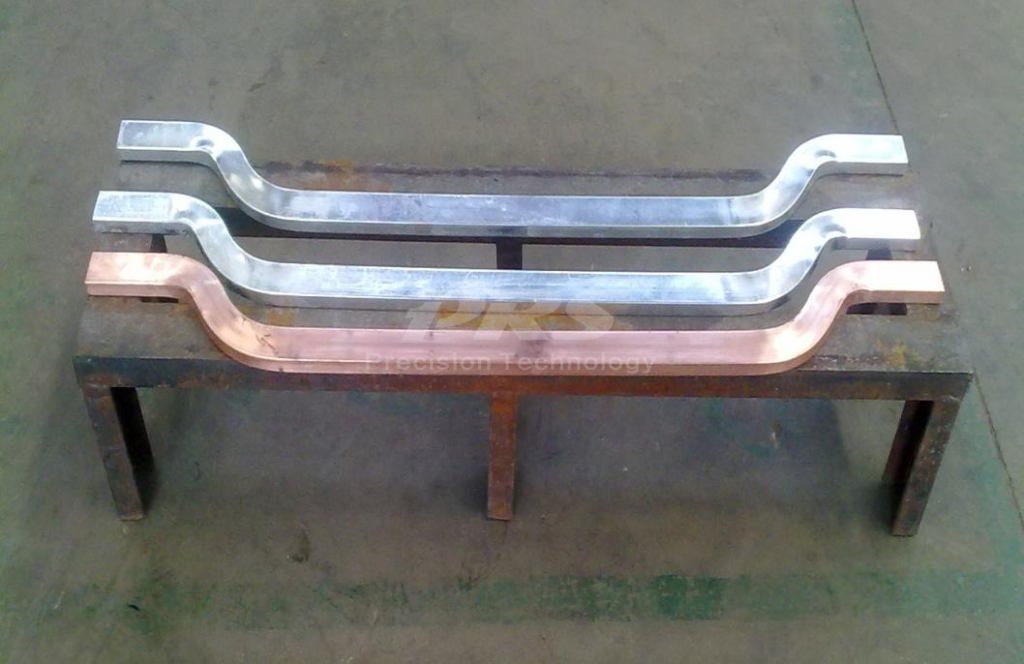

3.1 Cleaning and Preheating the Copper Rods
Remove grease and oxides from the copper rod, and then preheat the copper busbar to above 200°C.
3.2 Casting Process for Achieving Metallurgical Bonding
Hot lead casting of the copper rod achieves a metallurgical bond between the copper rod and the lead cladding, preventing the lead and copper from separating. This prevents bulging during use and ensures low lead-copper transition resistance, effectively guaranteeing the conductivity, mechanical strength, and hardness of the conductive beam.

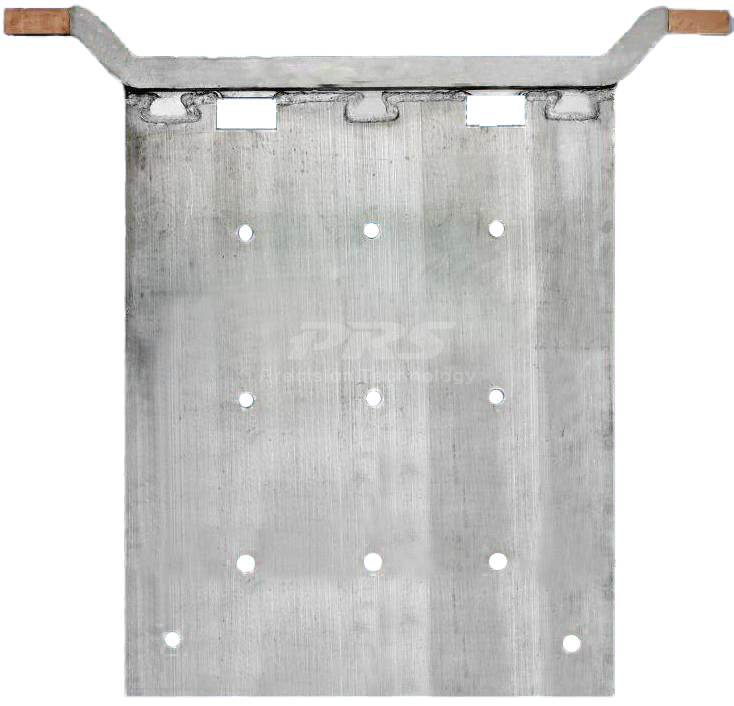

3.3 A Firm Weld Between the Conductive Beam and The Lead Alloy Plate
We apply a trapezoidal bayonet seamless welding technique to bond the lead alloy plate and the conductive beam, achieving a complete metallurgical bond at the weld. Using patented technology, three 100×50×25 trapezoidal bayonets are fabricated on the alloy plate surface, and then three 100×50×25 trapezoidal clamps are fabricated on the conductive beam transition plate. After the lead alloy plate and the conductive beam transition plate are inlaid, automatic acetylene seamless welding is performed.
4. Rigorous Quality Assurance:
Every anode undergoes stringent inspection. We verify composition, dimensions, weight, and surface quality. This unwavering commitment to QC means every anode that leaves our facility will perform identically to the one before it, batch after batch.
Why Our Lead Alloy Anode Plate is the Low-Risk Choice
1. Proven Technology and Reliability:
This is not a prototype. The application of lead-calcium-tin alloys in copper EW is extensively documented and understood. You are selecting a low-risk, predictable solution. Our anodes are renowned for their long service life, exceptional dimensional stability, and consistent production of A-grade LME cathode copper.

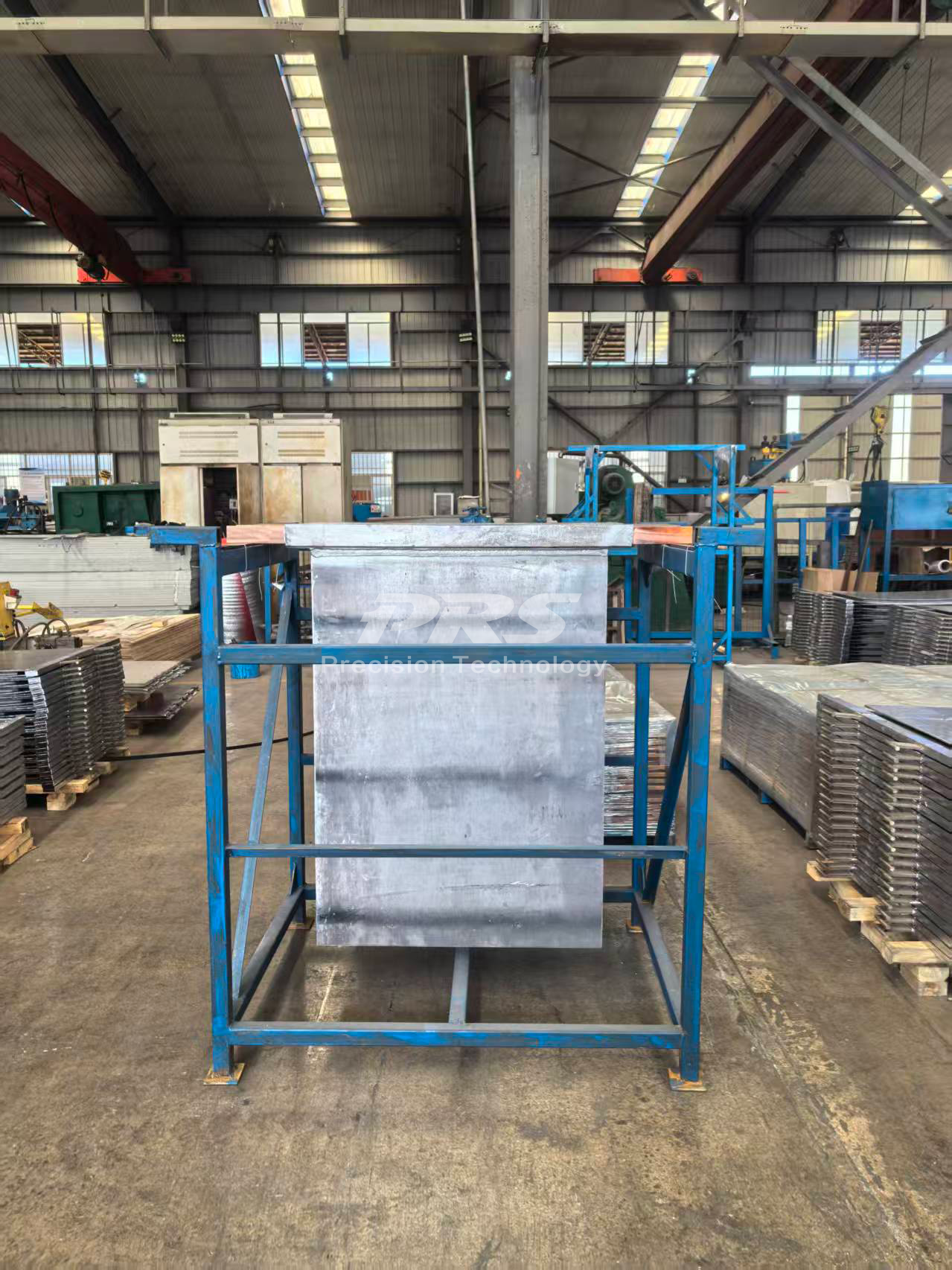

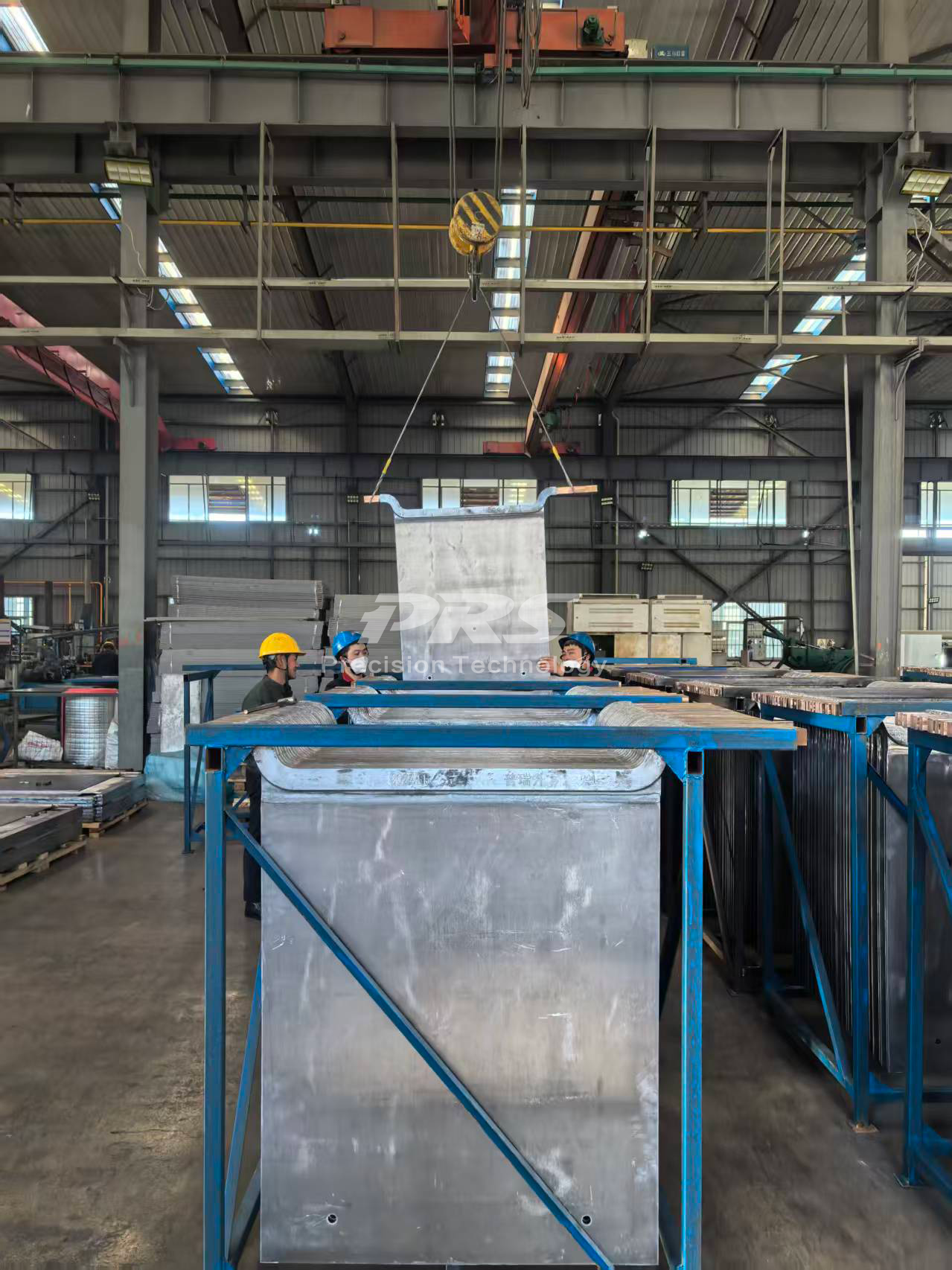

2. Massive Production Capacity and Guaranteed Supply:

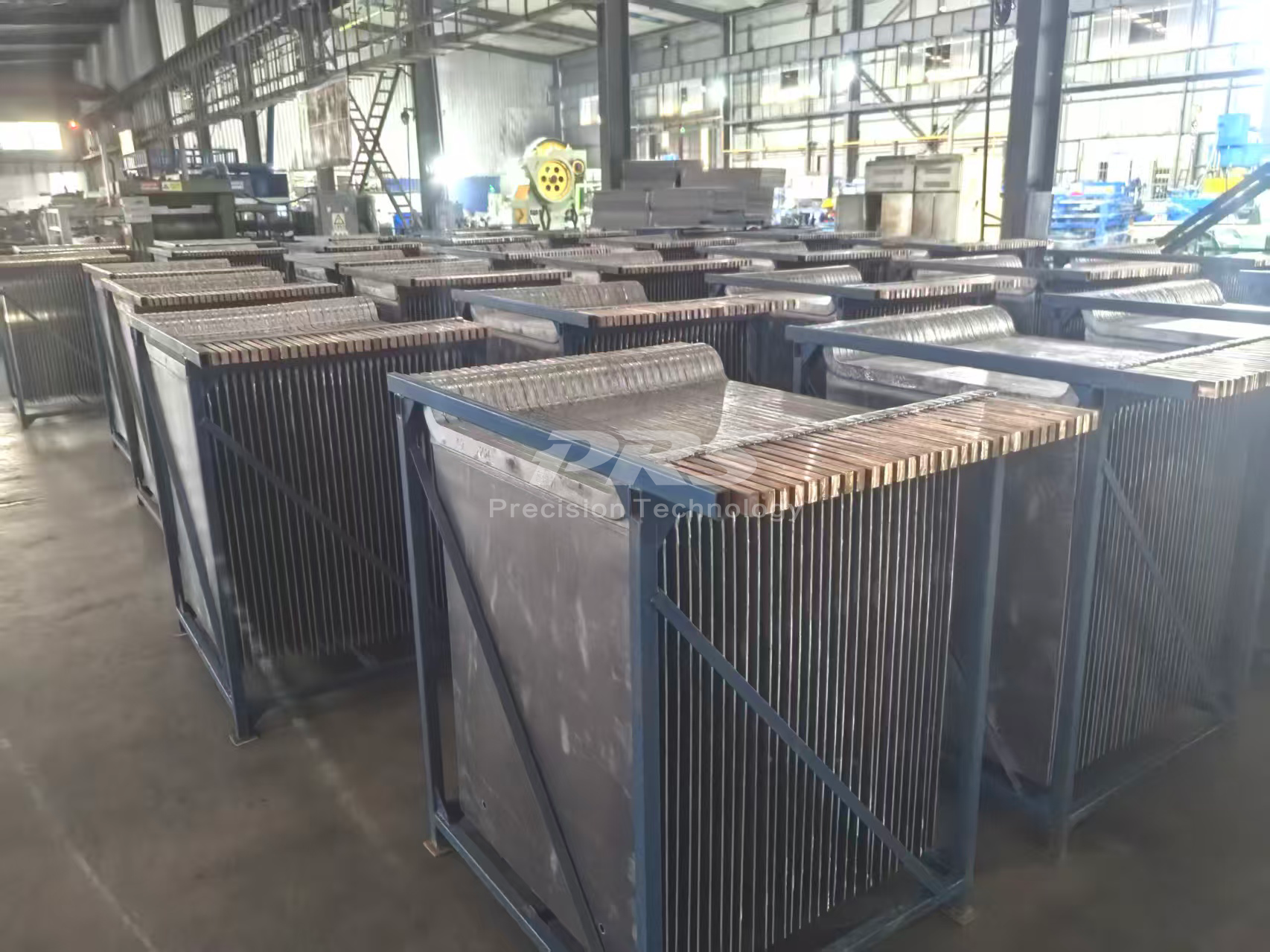

We have dedicated production facilities with an annual production capacity of 300,000 pieces of anode. This allows us to fulfill orders of any scale—from a single container to a full tank house for a greenfield project—and meet aggressive deadlines without compromising quality. You can be confident in our ability to support your operation, both now and during future expansions.
3. Optimized for Performance:
Rich experience have refined our recipe and process. Our anodes are engineered for:
Low Cell Voltage: The stable PbO₂ layer ensures efficient oxygen evolution reaction, contributing to lower energy consumption. Corrosion Resistance: The uniform microstructure and optimal alloy content provide excellent resistance to the acidic sulfate electrolyte, maximizing anode life.
Technical Specifications:
Base Material: High-Purity Lead (Pb) Standard Alloys: Pb-Ca-Sn Dimensions: Fully customizable to all standard and proprietary cell designs. Surface: Uniform, defect-free finish ready for immediate use.
More Than Just a Supplier of Anode and Cathode Plates
PRS has a rich experienced engineering and technique team. We can provide EPC services including full process consulting, solution optimization, equipment integration / supply in system and on-site commissioning or remote guiding.
Process Consulting
Our seasoned sales and engineers teams will communicate with you. We are just consultant of your whole EW process, according to your requirements and local conditions.
Drawings Optimization
The senior engineers from PRS can discuss the drawings with you, and provide reasonable suggests to optimize your drawings in maximum according to their rich experience.
System Supply
PRS is able to supply system equipment to you with a full range of crushing – ball milling – flotation – leaching – extraction – electrowinning, including certificates required.
On-site Commissioning
On-site commissioning, guidance and installation are available if in need, and remote guidance service by engineers or technique experts from PRS is also open for you.
Choose the Anode the Industry Trusts
Why experiment with your core process? Partner with a supplier that has the proven product and the production muscle to support your success.
